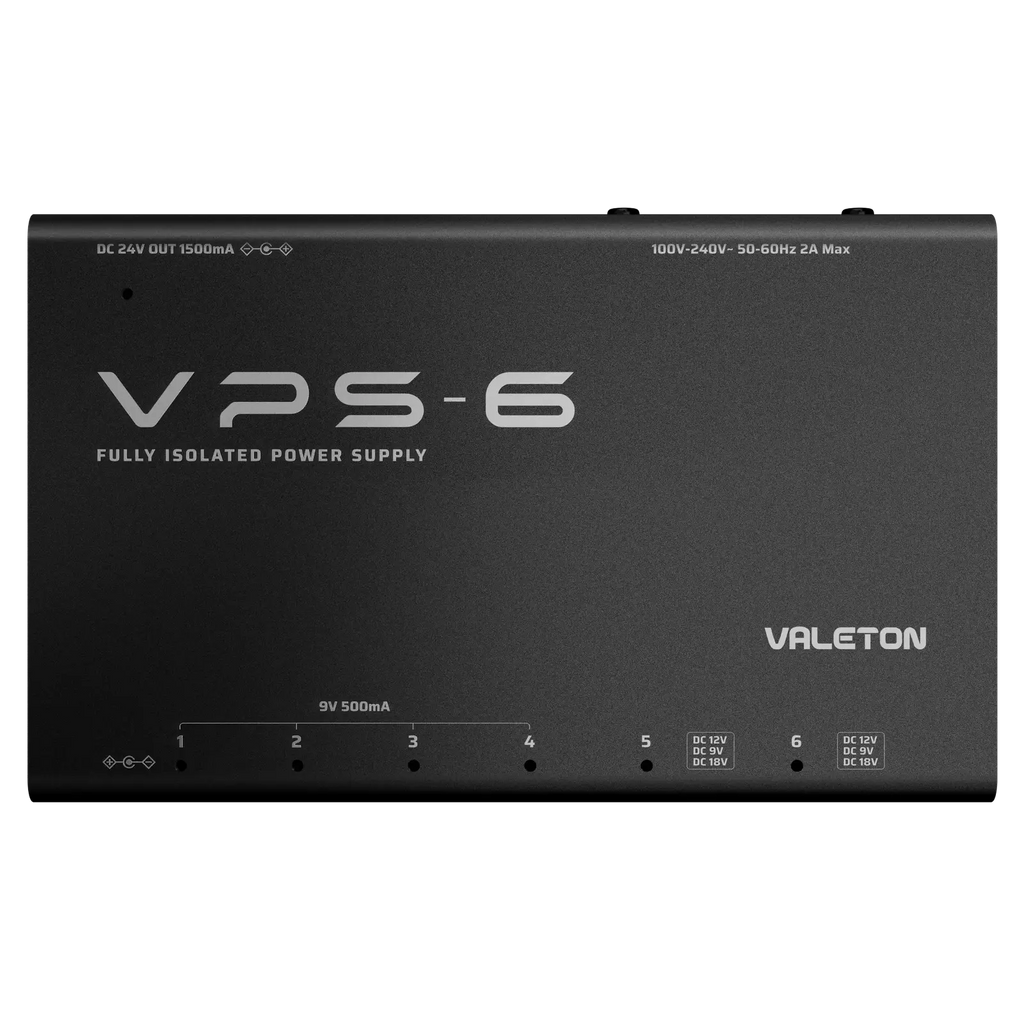

The Valeton VPS-6 is a high-performance isolated power supply built to provide pristine, noise-free power to multiple effects pedals. With dual isolation, it features six independent outputs, each tailored to meet the varying power needs of modern gear. This includes four dedicated 9V/500mA outputs and two adjustable outputs (9V/500mA, 12V/375mA, 18V/250mA), plus a powerful 24V output for expandable setups. Designed with advanced noise reduction and overload protection, the VPS-6 ensures your pedalboard’s performance remains clean and clear, with LED indicators for each output to safeguard against short circuits and power issues. Its compact, rugged aluminium casing and wide 100-240V AC input range make it adaptable to any environment, at home or on tour.
Features

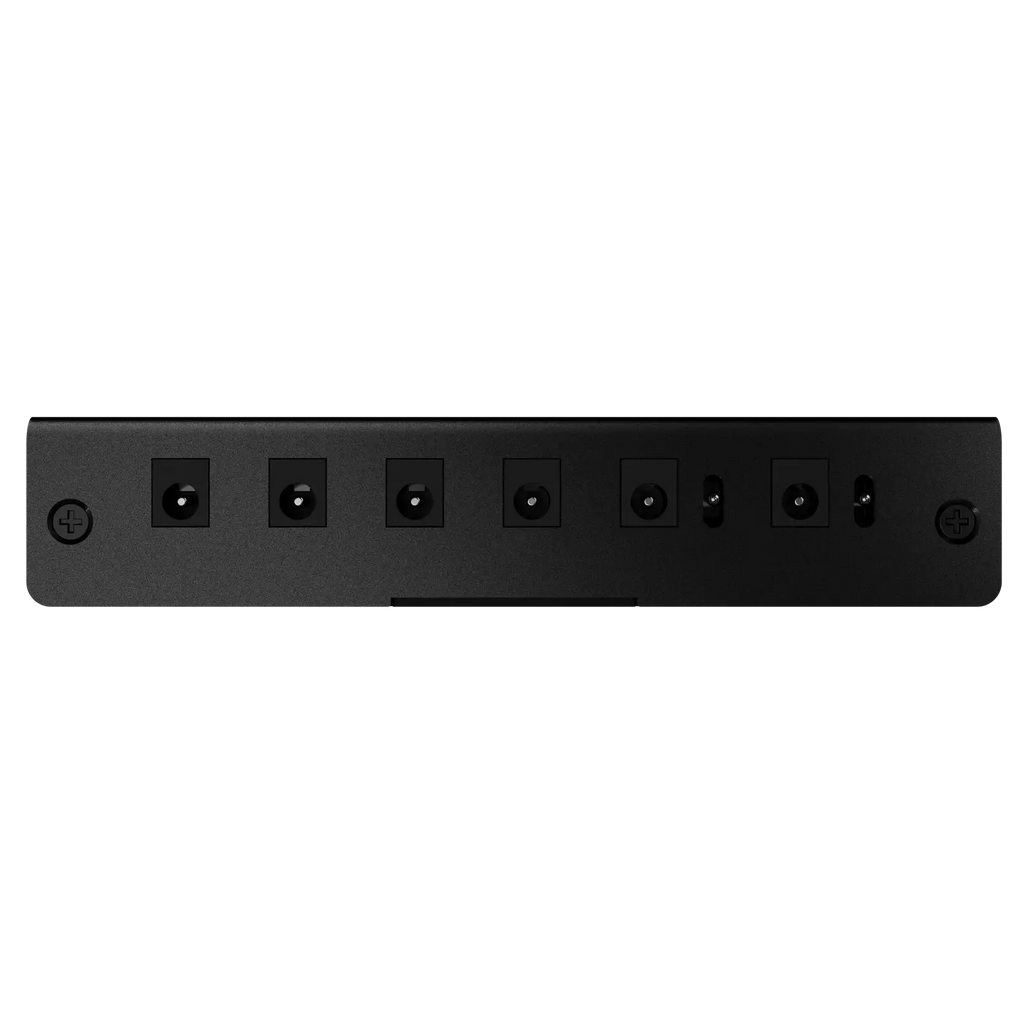

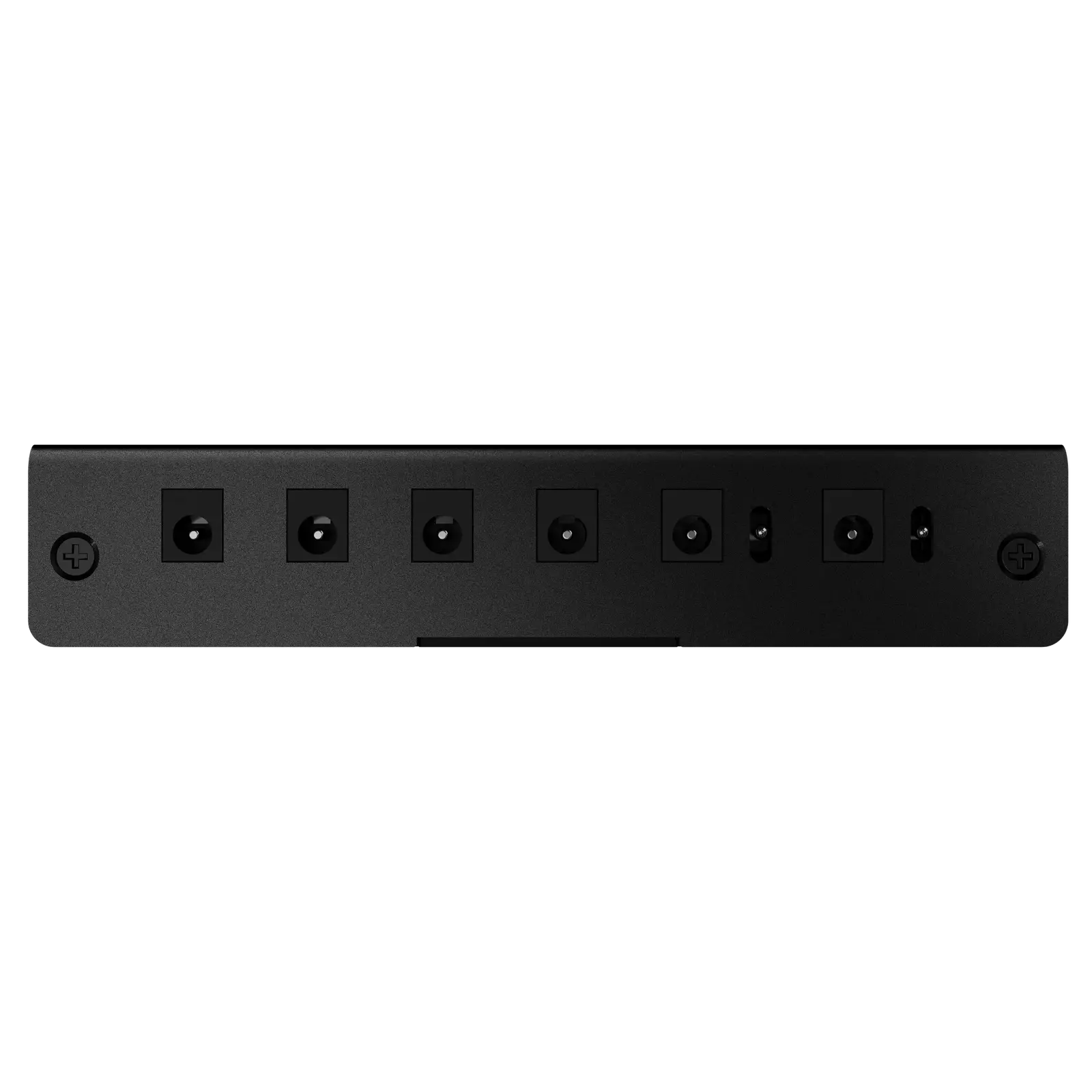

| 6 independent customised transformers for clean, reliable power to each channel |
| 24V DC OUT to connect other 24V DC input power supplies for additional power outputs |
| Overload and short-circuit protection on each channel, with LED indicators for status |
| Wide-range voltage input, self-adapting to AC voltage across various countries and regions |
| Energy efficient, compact design |
Specifications
| Input |

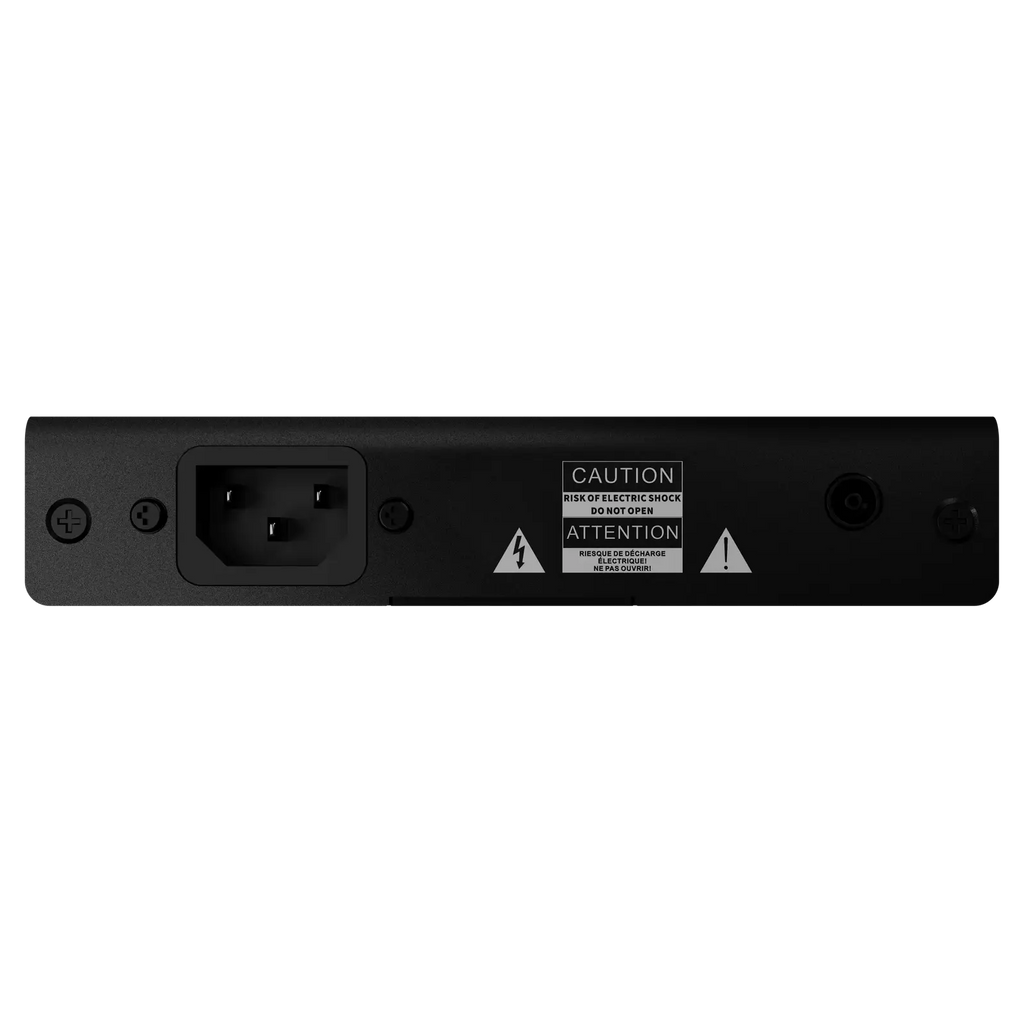

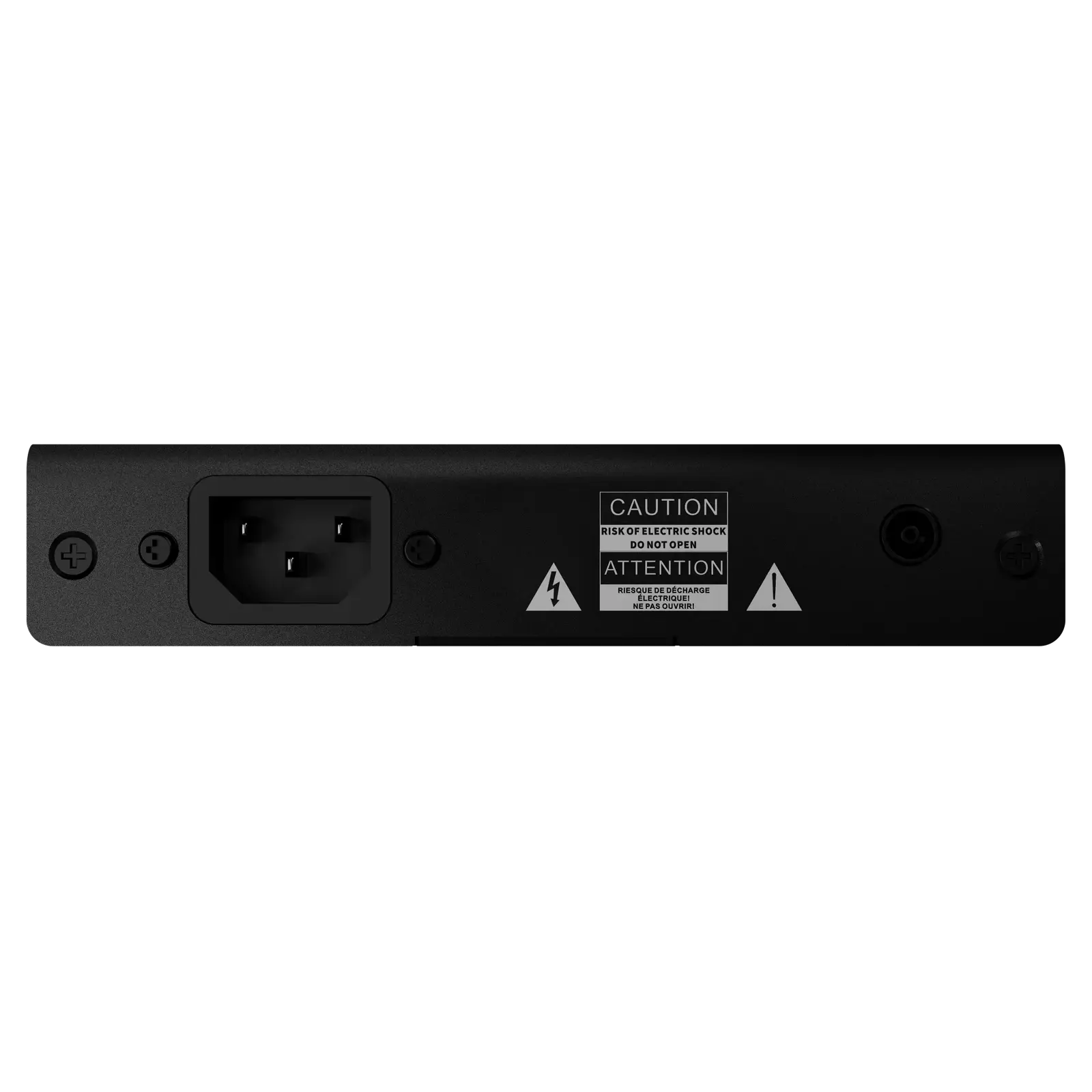

100-240V AC 50/60Hz |
| 9V DC Outputs |
4 x 9V DC, 500mA, centre-negative |
| Adjustable Outputs |
2 x switchable between 9V DC (500mA), 12V DC (375mA), 18V DC (250mA), centre-negative |
| 24V DC Output |
1 x 24V DC, 1500mA, centre-positive |
| Dimensions |
158mm (W) x 98mm (D) x 32mm (H) |
