A beast of a DI

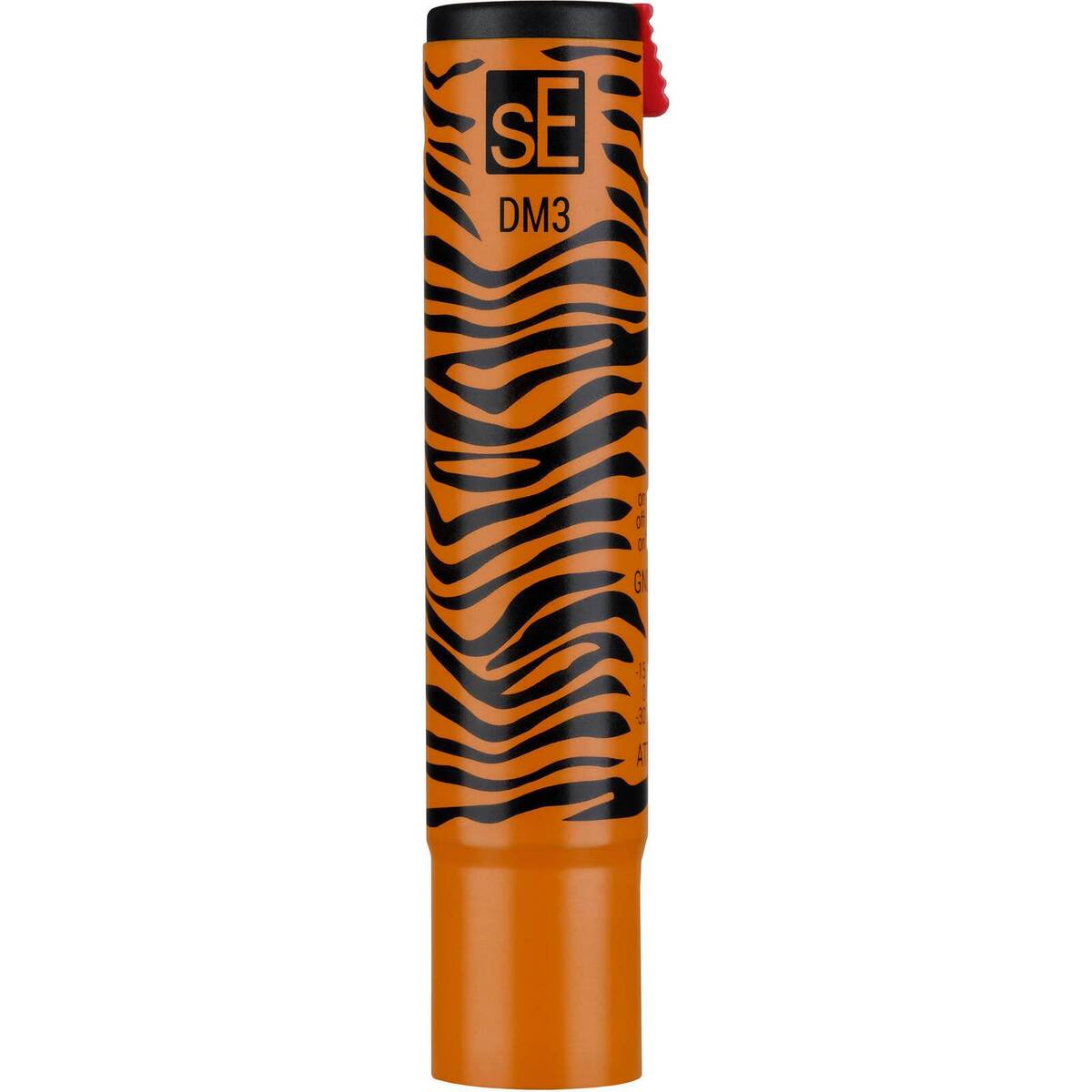

The DM3 is an active, inline DI with Ultra-HiZ input and an impressively compact design - in many ways, the DM3 will prove to be your key to great sound!
Recommended Use
Electric guitar, bass guitar, piezo pickups, keyboard, synthesizers, drum machines, laptops
Highlights
- Now also available in a matte-black finish
- Stunningly high 10 megaohms of input impedance
- Ultra-HiZ input for getting the best out of your instrument
- Massive headroom for even the hottest instruments
- A new standard to the ground lift switch
- Lockable ¼” input jack to prevent accidental disconnects
- Dedicated Class-A output buffer amplifier and premium finish
- Slim, all-metal discrete housing and gold XLR connectors
Power
Electrical Impedance: 86 Ohms
Recommended Load Impedance: >1K Ohms
Connectivity Input: 6.3 mm (1/4 in.) TRS jack
Output: 3-pin male XLR connector
Powering: 48V Phantom Power (P48 according to IEC 61938)
Sound
Frequency range: 10 Hz - 120 kHz (-0.3 dB)
Current consumption: 3.8 mA
Max input level: (0.5% THD)19 / 34 / 49 dBV (9.0 / 51 / 285 V)
Output noise level: 1 μV
