DiMarzio was founded on the spirit of continuous improvement and a passionate reverence for our vintage roots. Our parts hold to these same ideals, because we know that the performance of your pickups is only as good as the parts connecting them. So, we searched the industry for the most robust, reliable, and finest sounding electrical parts to offer our customers, including many parts that are custom-built specifically for DiMarzio.

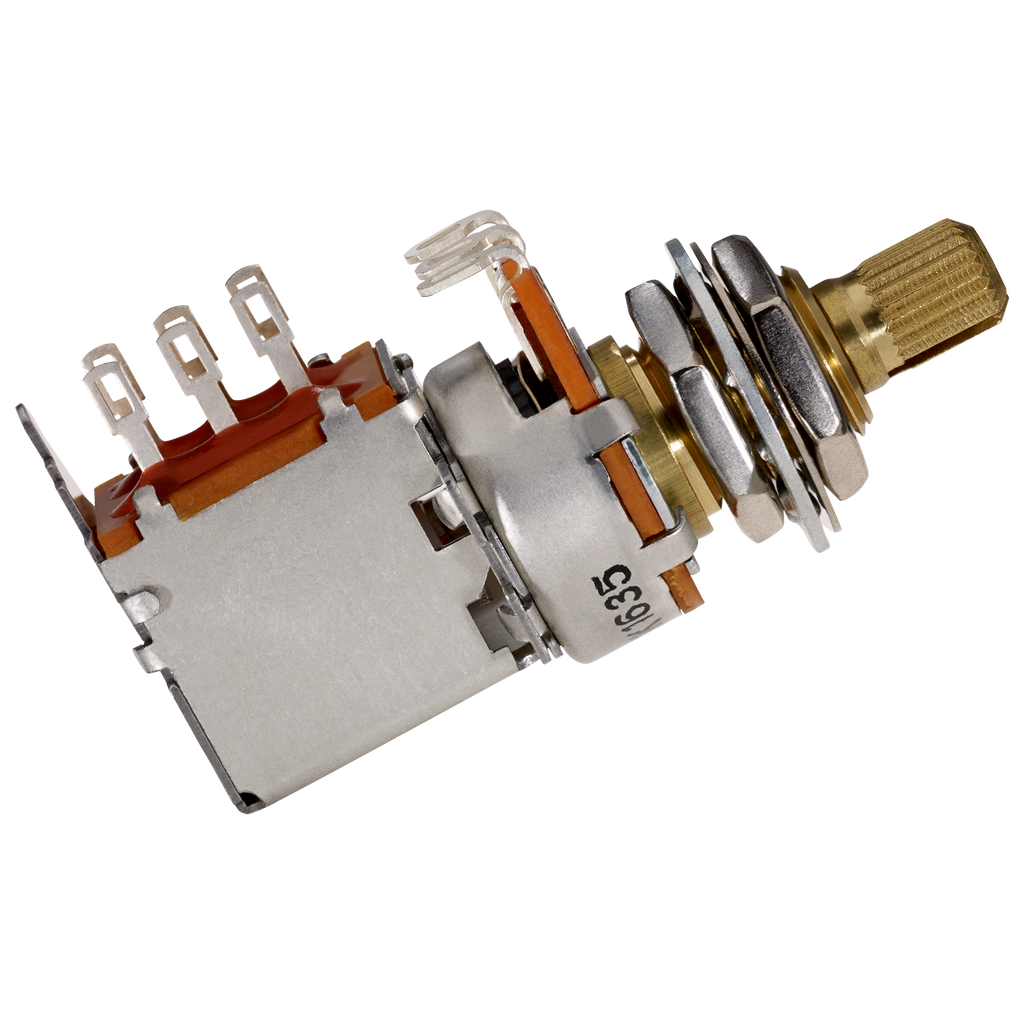

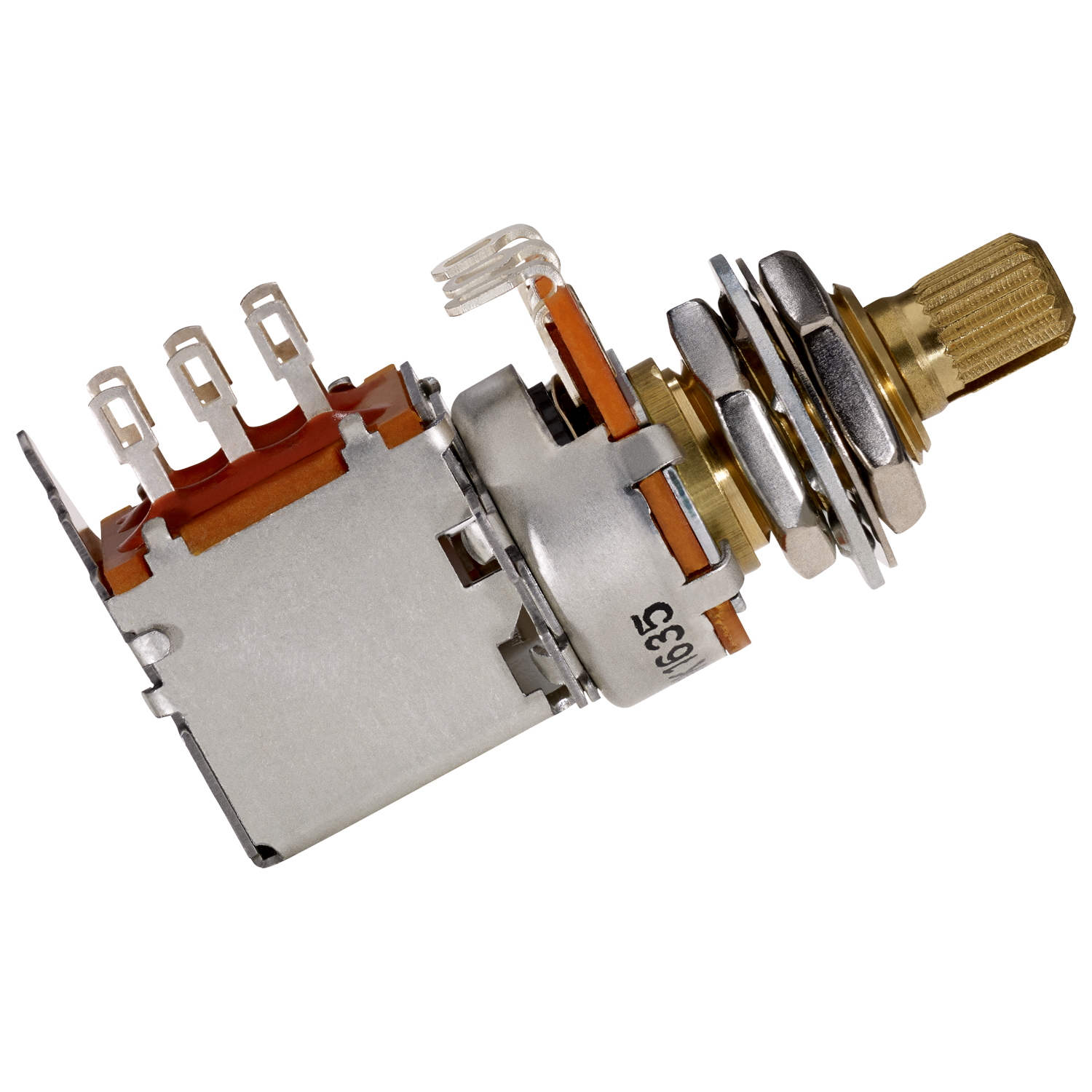

This push/pull potentiometer features the same audio taper as our Custom Taper Potentiometers, and ultra-smooth rotation. The paired DPDT switch and push/pull functionality gives you the added wire points to create series/parallel switching, coil-tapping, and phase switching. We even include a convenient solder point for grounding at the switch base, so that all of your wires will cleanly run in one direction, eliminating the need for any soldering to the pot itself.
The split shaft and bushings are made from solid machined brass, just like the vintage originals. The shaft is knurled with 24 teeth, a perfect fit for made in the USA knobs, including DiMarzio, Fender®, and Gibson®. We also include two nuts, one dress washer, and a saw-tooth lock washer for easy installation.
*Please note, these are direct replacements for the standard 3/8-inch (9.525mm) holes found on most Fenders and Gibsons. Some enlargement may be required for non-standard or import-specific diameters.The bushing specification is 3/8”-32UNEF.
