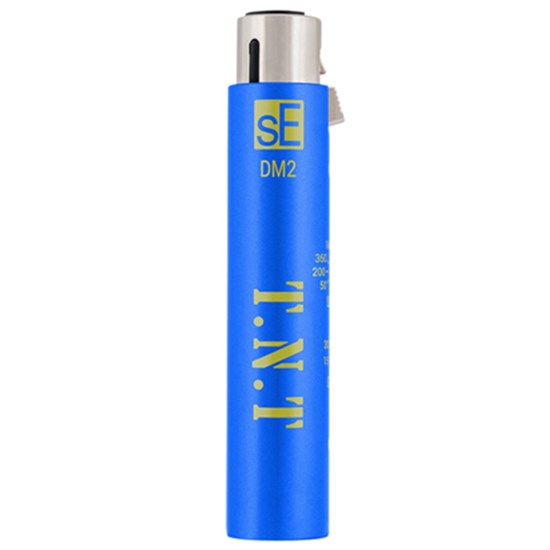

Explosive level for all your passive mics
The DM2 TNT lets you choose between a moderate +15dB or explosive +30dB of gain with an ultra-high impedance input and eight load settings to perfectly match any passive microphone.
Recommended Use:
Dynamic & passive ribbon microphones
Highlights:
- Switchable, clean and consistent gain from moderate +15dB to explosive +30dB.
- Eight load settings ranging from 50 ohms to stunningly high 10 mega ohms to precisely match any mic.
- Sophisticated class-A design and specially-selected high-grade FETs for a signal boost without coloration.
- Vastly lower output impedance and nearly half the noise of anything else on the market to raise any mic level with clarity.
- All-metal housing and premium finish ensures the DM2 can handle demanding on-tour or recording/broadcast studio lifestyles.
- Gold plated XLR connector for loss-free reliable signal connection.
Power:
Electrical Impedance: 135 Ohms
Recommended Load Impedance: >1K Ohms
Connectivity: 3-pin male/female XLR connector
Powering: 48V Phantom Power (P48 according to IEC 61938)
Sound:
Frequency range: 10 Hz - 120 kHz (-0.3 dB)
Gain: 15 dB / 30 dB
Current consumption: 3.1 mA
Max output level: (0.5% THD)9.5 dBV (3.0 V)
Output noise level: 1 μV @ 15 dB / 6.6 μV @ 30 dB
Dimensions:
Preamp diameter: 19 mm (0.75 in.)
Preamp length: 96 mm (3.78 in.)
Preamp weight: 80 g (2.82 oz.)
What's in the box:
- DM2
- sE Logo Sticker
- User manual with warranty card
